Crowd Distance Monitoring DeepSOCIAL The Most Complete Chinese Paper + Source Code Guide

4 years ago
Information
Rollroll Yuan
特色图像

The DeepSOCIAL crowd distance monitoring project, open sourced by Mahdi Rezaei, a researcher at the Institute of Transport Studies at the University of Leeds in the UK, has become a popular online application recently.Online source code tutorial access


DeepSOCIAL uses YOLOv4 to achieve pedestrian detection, then uses SORT to achieve target tracking, and uses monocular vision IPM inverse perspective mapping to achieve distance estimation, and finally evaluates crowd distance monitoring and risk assessment.

DeepSOCIAL implementation results

The reason why DeepSOCIAL has become a popular tutorial is not only because of its strong practicality in the current epidemic, but also because of its excellent effect.The average accuracy reaches 99.8 % and the real-time speed is 24.1 fps. It can be used in autonomous vehicles, human behavior recognition, anomaly detection, sports, crowd analysis and other fields.

The overall model structure of the target detection stage

Pedestrian Detection: YOLO v4

In the DeepSOCIAL project, YOLOv4 was selected to implement pedestrian target detection. In the paper, the author compared several target detection methods:RCNN, fast RCNN, faster RCNN, SSD, YOLO In the dataset PASCAL Visual Object Classes (VOC) and MS COCO Tested in .


Used to measure recognition accuracy and speed in target detection:mAP (mean Average Precision) and FPS (Frame Per Second)Conduct an assessment.

Finally, YOLOv4 was selected as the target detection method.

mAP test results of mainstream object detection methods
FPS test results of mainstream target detection methods

Pedestrian Tracking: SORT

In DeepSOCIAL's pedestrian tracking, the Simple Online and Real-time (SORT) algorithm was selected.

Personnel detection, ID assignment, tracking, and movement trajectory display effects

The main ones usedKalman filter is combined with Hungarian algorithm to solve the problem of motion prediction and data association.

Pedestrian Distance Estimation: IPM Inverse Perspective Mapping

The DeepSOCIAL project uses monocular vision, but uses a single camera to project the three-dimensional world scene onto a two-dimensional perspective image plane, which easily leads to distortion of the pixel distance between objects.

By applying IPM, the 2D pixel point (u, v) will be mapped to the corresponding 3D world scene coordinate point (Xw, Yw, Zw)

In 3D space, the center or reference point of each box is associated with three parameters (x,y,z), whereas in the image received from the camera, the original 3D space is reduced to 2D (x,y), and the depth parameter (z) is not available.


In order to apply a calibrated IPM (Inverse Perspective Mapping) transition, you first need to remove the perspective effect by setting the depth parameter z = 0 and perform camera calibration. You also need to know the camera's position, height, field of view, etc.

Project Operation

1. Introducing dependencies

from IPython.display import display, Javascript, Image
from base64 import b64decode, b64encode
import os
import cv2
import numpy as np
import PIL
import io
import html
import time
import matplotlib.pyplot as plt
%matplotlib inline

2. Compile YOLOv4

%cd darknet !sed -i 's/OPENCV=0/OPENCV=1/' Makefile!sed -i 's/GPU=0/GPU=1/' Makefile!sed -i 's/CUDNN=0/CUDNN=1/' Makefile!sed -i 's/CUDNN_HALF=0/CUDNN_HALF=1/' Makefile!sed -i 's/LIBSO=0/LIBSO=1/' Makefile

3. Using Darknet’s Python interface

# 导入 Darknet 函数来执行对象检测
from darknet2 import *
​
# 载入 YOLOv4 架构
network, class_names, class_colors = load_network("cfg/yolov4.cfg", "cfg/coco.data", "/openbayes/input/input0/DeepSocial.weights")
width = network_width(network)
height = network_height(network)
​
# 在图像上运行 Darknet helper 函数
def darknet_helper(img, width, height):
  darknet_image = make_image(width, height, 3)
  img_rgb = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
  img_resized = cv2.resize(img_rgb, (width, height),
                              interpolation=cv2.INTER_LINEAR)
​
  # 获取图像比例，将边界框转换为适当的尺寸
  img_height, img_width, _ = img.shape
  width_ratio = img_width/width
  height_ratio = img_height/height
​
  # 运行 Darknet 模型
  copy_image_from_bytes(darknet_image, img_resized.tobytes())
  detections = detect_image(network, class_names, darknet_image)
  free_image(darknet_image)
  return detections, width_ratio, height_ratio

4. Use SORT to achieve real-time tracking goals

!pip install filterpyfrom sort import *mot_tracker    = Sort(max_age=25, min_hits=4, iou_threshold=0.3)

5. Input settings

Input            = "/openbayes/input/input1/OxfordTownCentreDataset.avi"
ReductionFactor  = 2
calibration      = [[180,162],[618,0],[552,540],[682,464]]

6. DeepSocial parameter settings and function introduction

7. Reasoning process

8. Display the results


Pedestrian Target Detection & ID Assignment
Pedestrian tracking & distance measurement

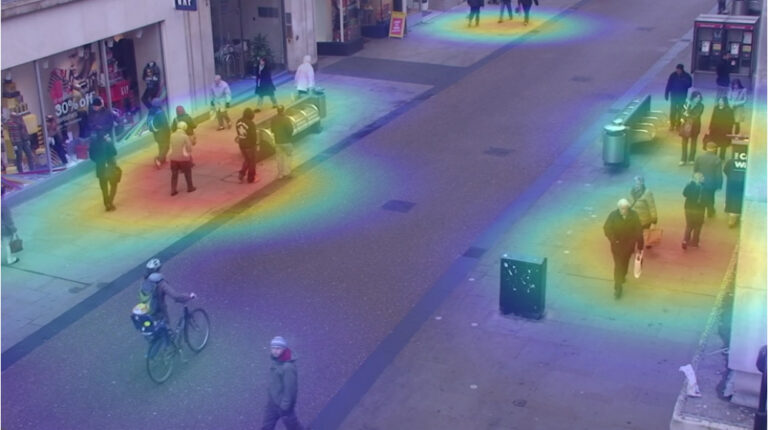

Crowd gathering heat map
The code for 6&7 is relatively long.Please visit the original tutorial
